Head First HTML5 - JavaScript notes (2)

"namespace"

• There is no strict "namespace" construct in JavaScript similar to C#. The notion of "namespace" is used to reduce the scope of the variables and prevent polluting the global namespace.

The output looks like the following:

Simple "Namespace"

• The next step is to add functions to this namespace. We can use a self-executing function for this purpose. See the following. The idea is to add our custom functions to the namespace.

Head First HTML5 - JavaScript notes (1)

Basic

• JavaScript is not a statically typed language. The core types are Object, String, Number, Boolean.
• The properties of an object can be accessed through "." or ["property name"] syntax (e.g. obj["name"], obj.name)
• Arrays are pretty standard. Two ways of declaring. See below:

• JavaScript objects are not "typed", instead think in terms of the "shape" of the object. See below.

Functions

• Functions does not require a name. This is like anonymous functions in C#.
• Functions can be considered "value" and it can be passed around as variable. Think about "Action" or "Func" (delegates) in C#.
• Variables declared as "var" in functions scoped to the function itself. It is a good practice to scope variables to functions.
• Normally when passing arguments to functions, be aware that the primitive types are passed by "value" and objects are passed by "reference". The "reference" allows to get to the original object, similar to C#. See the following code.

• Objects can contain behaviour which is achieved through functions (method). See below:



• The notion of constructor can be used to create an "object". The constructor in this case is a function.  See the following:

Most importantly the "new" keyword is used to create a new instance of "Dog". Its a convention to capitalise the constructor function.

• The methods attached to an object can use "this" in the body. The "this" keyword refers to the object that the method is contained in. Normal functions may not use "this" in the similar fashion to a method in an object.

Curse of the Base class

Please do not get me wrong, Inheritance has its place.

In this post, I will share a very badly designed base class implementation. The goal is not to criticise someones work, but to learn from it.

Some code

The Platform (developed by a 3ed party) we use had a base-class implementation that was similar to the following.

The class itself looks innocent but it has massive problems. The following is the example provided in the documentation.

So how can we actually unit test this code. Nightmare!

Refactor (ugly)

We need to organise the class so that is it suitable for unit testing.

The following is my first attempt. (Remarks: I am using bastard injection in this example.)

We have removed the call to the base class "Add" method in the derived class "Add". The most odd looking code is in the public constructor. It is calling the internal constructor with "IDatabase" and null. If you remember the constructor resolution order, you might remember that the public constructor is resolved last (in the above example). This means that the "_addAction" delegate is initialised twice. Once with null then by the actual value from the public constructor.

Unit test

Sorry, ideally you should be writing a test first. (TDD!).

The unit test should focus on the code we wrote, not what is provided by the Platform.

Its all here.

Udacity Web Development course

I finally got around to completing the "Web Development" course on Udacity. I have to say the instructor Steve Hoffman has very good technical knowledge. The examples he presented are very good and "real".

It is really great to see instructors outside the academia conducting these courses. Sometime what we need is practical and realistic examples rather than hypothesising a use case.

My next target is Software Testing course.

Big thank you to Udacity for presenting these courses.

My cert :-)

The God object (patterns) [2]

In the previous post I was at a point where the baby was feeding, sleeping and most importantly making sure we spend money on nappies. In this post I attempt to extend my initial design.

So far my TheSpecialOne class looked like below:

A week went pass and after many hours of sleepless nights we realised that the baby was constantly hungry. Being responsible parents we kept on breast feeding, but it was time for the magic formula milk.

Our requirements were very simple. We wanted to be able to breast feed and swap to formula milk to top up. We wanted make this change without having to disturb the baby too much (or without him knowing).

If you take a step back, we see that feeding is an activity and only the method used for feeding is what is changing. So in reality we should be able to swap between different implementations (of feeding methods) without changing the abstraction. We would need the flexibility to alter the feeding process independent of the method used. Sounds familiar? What I am describing here is the Bridge pattern.

I have done some fundamental changes to my initial design. I introduced a new interface called IFeedStyle. This is the abstraction I will use to introduce different methods of feeding (e.g. bottle, spoon feed etc).
However I know that as he grows, we will need to be flexible. Consider the following code.

The key aspect here is that the "Start()" method is abstract. This way I can create as many derived classed as I want. As the baby grows his eating habits will change. While he is a baby, he may only take milk, but when he becomes a toddler some solid food. But while having solid food he may like to play with some toys but drink milk using a bottle. The idea is simple, based on different strategies, we can decide how to feed. For the moment we will only have a baby specific implementation of this abstract class.

The above abstract class must be integrated to the Person class. The following is the modified Person class.

I think you should see the advantage of using the Bridge pattern. The actual task of feeding does not change, only the implementation that meets the FeedableBase class. We can provide different implementation without modifying the Person class. Now the IFeedingStyle and FeedableBase can change independently.

All set, the calling code looks like this:

More to the point, the output looks like this.

Enough fun and back to real work!! (code is here)

The God object (discovery) [1]

In Software Engineering the God object this refers to an object that every other object depends on. I am sure simple search on the internet will yield dozens of articles describing the pros-n-cons of using a God object.

Me and my wife welcomed our son few weeks ago and I was immensely busy. It is only today that I managed to find few hours to myself to write this note. When it comes to baby stuff, I think whatever the literature that is available in the market is only half the story (or may be less). Having a child changes everything. This ever-hungry machine will forever change your life and mostly in a good way. Yes, you will loose few hours of sleep here and there but I think its absolutely worth it. The joy and happiness that this new member brings to your small family is priceless. Enough talk.... :-)

The God object is like a baby. We know its there, but for an application point of view its a big black box. The God object can do everything, (e,g write to database, file system, resolve dependencies etc). For a development team that is mature, understanding what the God object is not that difficult. However for a new member its similar to becoming a father/mother for the first time. You just know its there, but just do not know how to use it!

So what do I know about the Baby (God) object. The only thing that I knew at the beginning was it derived from a very generic class Person. Thanks to to modern wonders of science and technology we found out the gender of the baby. Therefore we knew its a Person and had a property called Gender which was set to to Male. So my abstract world looked like this.

After the baby was born I soon realise that this God object has a very simple and effective behavior. Crying. I have to say is very effective and the best way to model this behavior was to implement ICanCry interface. Crying can sometimes be a Big thing! especially for a new born. My object model was evolving.

My son is very special to me, therefore I did not hesitate to make a brand new instance of this Person. We cannot create an instance of a Abstract class, however we can derive from it. I called this specialisation TheSpecialOne.

You might wonder why I decided Abstract the "Cry()" method as above. The reason is quite simple. Each baby cries differently. Some can be very loud but others are not. Therefore I decided my son can decide how best to cry :-).

This does not look right, don't you agree? Well, every person should have a gender. We need to ensure that this is a required property. The best way to make sure that the Gender is populated is to have the Person class to contain a constructor that takes in the gender as a parameter.

We were starting to forget the most important piece of the puzzle. The Name. There is no doubt that a person should have a name, therefore I introduced the new Name property to the Person class.

Few hours after the baby was born he was ready to feed. As this is a fundamental behavior of a person, I thought of introducing this behavior to the Person class for the moment.

It did not take even few more hours to realise another fundamental behaviors. These were "poo" and "sleep". So I modeled this in to my glorified Person class.

One thing I did do was to implement "Poo" in the base class itself. Whatever we take has to come out at some point. Therefore I did not really see the point of having a specialisation of "Poo" in my TheSpecialOne class.

So far my son is feeding, sleeping, crying and can poo. (Code is here.)

Playing with Google App Engine

I am following the the Web Development (CS253) course offered by Udacity. If you do have spare time, I would recommend this course. Yes, I have worked with web technologies for few years, but this course is a good eye opener!. Above all its all free!. It is taught by Steve Huffman (co founder of reddit).

I primarily code in .NET and recently started looking at Python. I have to say, its so good, and refreshing.

As a part of the course, we are introduced to Google App Engine. It is fantastic!

One of the tasks in the course was to create a simple blog using Python and Google App Engine. The blog uses the Google App Engine data store, which is a massively scalable distributed database.

If you have not used Google App Engine, have a look at today.

My skeletal blog is here.

("quirky") SQL Server with IIS App Pool users

Scene

So you have developed a great .NET MVC web application. All the unit/integration tests passing and ready to go live!. You have tested the site using Visual Studio built-in web server (Cassini) and would like to try it out in "real" IIS.

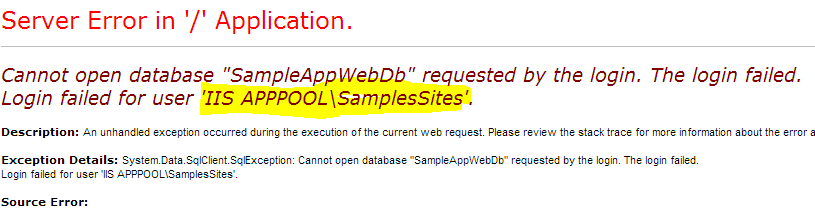

New site is created and deployed but you are faced with the "yellow-screen-of-death".

The issue is that the site is impersonating the application pool user. As we just want to view the site, we can go to SQL Server and give the application pool user (IIS APPPOOL\SamplesSites) the permission to read the database. Simple!

Problem

We can add a new SQL Server user mapped to the IIS AppPool user. (See below.)

Looks good, but when we try to add a new user, we get the following error.

This is very strange. Even though the "Select User" dialog finds the application pool user, it cannot be mapped to a SQL Server login.

Solution

Here comes the MAGIC!

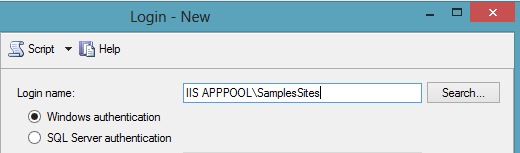

If you return to the "Login - New" dialog and type in the application pool user and click "OK" then the login is added.

Once the user is added, you can see it by expanding the security tab. (See below).

Fun!

(see this post for more information.)

("quirky") Entity Framework with DatabaseGeneratedOption.Identity

I am pretty impressed with Entity Framework 5 so far. Especially Entity Framework Code First is a massive time saver!

Caution
I recently needed to share a reference to a row in a table with an external system. Simplest solution is to share the primary key which most of the time is auto incremental unique value. From the outset this does not look too bad. However, sharing primary keys can be a massive security flow. If a someone gets hold of the primary key, they can "guess" what the next key might be.

Setup
Entity Framework kindly provide us a standard pattern to setup a primary key for an entity. See the following model class.

The "Id" is set to be the primary key, with the seed and increment set to 1. See the following illustration.

It is never a good idea to share technical keys outside the application boundary. The way around is to have random key that is uniquely identifies the row. We can achieve this by introducing a new "Reference" column with the type "GUID". The modified model class looks like the following.

Problem
There two ways to populate the GUID. The simplest approach is to create a new GUID (GUID.NewGuid()) just before saving the entity.  This is proven to work and reliable.

Alternatively we can get the database to do the work and generate a new GUID. In order to force the database to create the GUID automatically, we need to "inform" Entity Framework our intention. The first step is the update the model class to the following. (BTW you need to reference System.ComponentModel.DataAnnotations.Schema namespace). I am using data annotation, but the same behavior can be achieved by the Entity Framework fluent API.


I find the syntax pretty strange. We are basically saying that "Reference" is the "identity" of the entity. Does this mean primary key is no longer the "identity"? (we'll find out soon).

If you regenerate the database (using Entity Framework Code First) what you see may surprise you. By the outset the table looks pretty good. (see the illustration).

As expected the "Id" is the primary key and the "Reference" is an uniqueidentifier field.The biggest surprise is the seed and the increment for the primary key. (see below.)

The seed and the increment is not set and worse "Id" column is no longer the identity. This is strange.

If we dig a just a bit deeper, we see how SQL Server generate the uniqueidentifier automatically (see below).

The "DefaultValue" is set to "NewId()" which is how SQL Server generate a GUID. When a new row is added, the "NewId()" function is invoked and it populates the "Reference" column.

Solution

We yet fix the problem. Our desire is to have an incremental primary key and a random "Reference". In order to achieve this, we need to update the model to the following.

The key point here is that we have added "DatabaseGeneratedOption.Identity" to the "Id". This adds the seed and increment to "Id". So when we add a new entity database, automatically generate a random "GUID". The GUID is safe and can be shared externally.

Reading Blobs from SQL Server in chunks

There are many reasons why we want to store blobs in SQL Server, instead of a path to a file. Security  might be a very good reason.

We can use the varbinary type in SQL Server to store blob data.

So, lets say that we managed to get some blob data to SQL Server. We can simply use ADO.NET, Entity Framework to read this data. This task is straight forward. Now, consider the scenario where there is a large blob, and we want to read it in chucks. We might do this in order to optimise the application performance (streaming), network traffic. We do not want our applications to "hang", while blobs are being read from SQL Server!

I have created a very simple table, and the schema looks like below:

Lets get some binary data to our table:

Ensure to replace the path to a file in your system.

I will be using Visual Studio Express 2012. Instead of just showing the code, I would like to highlight the most important points.

The first stage is to make a connection to the database. For this, we can simply use the SqlConnection class. Thereafter we will use SqlDataReader class to read the data. The following is the first part of the class.

Don't worry too much about this, just keep an eye on the SqlConnection and SqlDataReader. In the constructor, I have created an instance of SqlConnection with a connection string. Again, you will need to set your own connection string.

The next point is the "CommandString". This is the SQL I will be using to read data from our table. The keyword that stands out from this string is "DATALENGTH". We use DATALENGTH  to find out the size (length) of the byte stream stored in the "Payload" column.

The DATALENGTH function returns the number of bytes in the "Payload". We will be reading 1MB at time and I have created the "ChunkSizeBytes" variable to store the maximum size of the chunk.

We can now open the connection the database.

In the above method, I have used SqlCommand class and has initialised it with the "CommandString" and the connection. Thereafter we can execute the command with the "SequentialAccess" command behavior. This is the most important piece of the puzzle. By using this behavior we are essentially configuring our connection not to read the entire blob, but read it as a stream. The next behavior is "CloseConnection", which closes the connection when the reader finished reading.

Next step is to read the data.

The above method reads the "Payload" data in 1MB chunks. We use the "GetBytes" method to read the chunk. Yes, there are many optimisations that you can do to this method. The first is not to "re-initialise" the "bytes" variable, but to reuse it.

What is basically happening here is that, the "callback" delegate is invoked for each chunk.

 The Console application looks like below:

Nothing major, I simply write the bytes to a file. This is what I got when I execute the application.

You can see that the delegate was called 5 times and we did not receive the full 1MB in the last attempt.

We can see that the file is only 4.6MB, and maps directly to the results we saw in the console application.

My PDF works!

Enjoy! (BTW - code is here)

How pure are you.....? (1)

The development of software is an investment. Similar to any other investment, there are investors. Return on investment (ROI) is what really matters for the investors. (Investment 101)!  ROI impact our pensions, lifestyle, and EVERYTHING in between.

I was told recently that there must only be a single Assert in a unit test method. Okay, absolutely I would agree in principal. The real question is, do we take this statement literally or in principal.

Consider the following code:

We can test the "GetResult" method with various inputs. From a purist point of view a typical test might look like below:

For each input we will need to ensure that the "dateTimeGetter" delegate is called. There are two tests one for checking the value and another for the date and time. Waste of time ( () => money => everything) if you ask me!

Instead we can write a single test to ensure that the correct value is returned together with the expected date and time.

I think we need to strike a balance when it comes to writing concise tests that make sense to the code reviewer. Just because someone wrote in a book, we must NOT take it on its face value.

I believe a developer must be pragmatic and add value to the business. The value should be tangible such as a new functionality so that business see progress.

The key to success in software development is to have well architectured, maintainable and readable code that meet the three pillars of the project. (Quality, Cost and time).

"Simple" Service Locator

The Service Locator pattern has been subjected to many arguments and surely it will continue for many more years. As usual the best source to learn about the Service Locator pattern is from Martin Fowler.

 Design patterns

Design patterns, when used correctly can help to "craft" the software. However design patterns can easily make the code hard to understand too. So I guess there should always be a balance. My objective of this post is not to argue that Service Locator is an anti-pattern or not. My goal is just to write few lines of code and see how all fits together. I thought I will write a "form" of service locator that anyone can understand.

"Simple" Service Locator

The interface of the "simple" Service Locator looks like below:

I created a simple Console application that uses this Service Locator. The usage looks like below:

Limitations

A type must always implement an Interface.
A type implementing multiple interfaces must be registered separately.
Only an interface can be registered against a type. ... etc etc, Many more.

If you interested in the code you can download it from GitHub.

Entity Framework 5: Extracting Schema (be careful)

Entity Framework 5 (EF5) Code First is a fantastic addition when you are designing the model. EF5 Code First supports the following options for creating a database:

1. drop and create the database,
2. drop and create database if model changes or
3. use an existing database

This is great for when developing the application. However I think dropping and creating databases in production environment is something that any sane person will discourage  Normally prior to executing a script (especially creating a database) in production, it has to be reviewed and validated. So, how can you extract the schema SQL from EF5 Code First model.

How to

Lets create a very simple data context using EF5 Code First. See the following.

    /// <summary>
    /// This class represents a simple context.
    /// </summary>
    public class DataContext : DbContext
    {
        public DataContext(string connectionString)
            : base(connectionString)
        {
        }

        public DbSet<School> Schools { get; set; }
    }

    /// <summary>
    /// This class represents a School.
    /// </summary>
    public class School
    {
        public int Id { get; set; }

        public string Name { get; set; }
    }

I have created a console application to put everything together.

class Program
    {
        static void Main(string[] args)
        {
            // Database strategy
            Database.SetInitializer<DataContext>(new DropCreateDatabaseIfModelChanges<DataContext>()
);

            // ConnectionString
            var connString = "Server=.; Database=EFGenSchema; Trusted_Connection=yes";

            var dataContext = new DataContext(connString);

            var objectContext = (IObjectContextAdapter)dataContext;

            var scripts = objectContext.ObjectContext.CreateDatabaseScript();

            Console.WriteLine(scripts);

            Console.ReadKey();
        }
    }

I have highlighted the critical parts of the code. The "DataContext" (which is derived from DbContext) is cast to "IObjectContextAdapter". Then we get a handle of the old "ObjectContext" (i.e. from EF4). Thereafter the "CreateDatabaseScript()" method is called. Following is what you see in the console window.

Well... perfect!, you might say... But wait!!!

Got-ya

Initially I thought EF5 inspects the classes registered in the data context and then generates the appropriate SQL. I was wrong.

Open the SQL Server Profiler and then re-execute the above code to generate the schema. Following is what you will see.

Wow!, EF5 is creating the database and doing its work. All I asked was to create the SQL script.

To be honest, this was really puzzling to me. The API is clearly named "CreateDatabaseScript()" and there is nothing to indicate that as a side-effect, the database is created. I am bit surprised why this behavior is not documented.

Now instead of using the "Drop Create Database when model changes" you can set the database initialisation strategy to "null". See below:

            // Database strategy
            Database.SetInitializer<DataContext>(null);

If you now execute the above schema generation code (with database initilisation strategy set to null), you will not see any attempts by EF5 make a connection with the database server in SQL Server Profiler.

Therefore if there is a requirement to extract the schema from EF5 Code First model, make sure to set the correct database initialisation strategy.
